SD-2000A Solenoid Diagnoser
Function:
Detect solenoid electrical faults
and valve air gap faults
• Build in database, more than 30
solenoid data pre-installed
• User is able to add new solenoid
data by measuring a good one
• Useful tool for on-site diagnose
engine faults

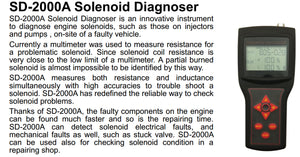

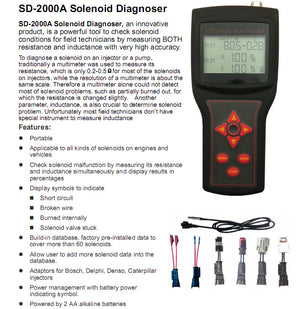

SD-2000A Solenoid Diagnoser, an innovative
product, is a powerful tool to check solenoid
conditions for field technicians by measuring BOTH
resistance and inductance with very high accuracy.
To diagnose a solenoid on an injector or a pump,
traditionally a multimeter was used to measure its
resistance, which is only 0.2-0.5Ωfor most of the solenoids
on injectors, while the resolution of a multimeter is about the
same scale. Therefore a multimeter alone could not detect
most of solenoid problems, such as partially burned out, for
which the resistance is changed slightly. Another
parameter, inductance, is also crucial to determine solenoid
problem. Unfortunately most field technicians don’t have
special instrument to measure inductance
Features:
Portable
Applicable to all kinds of solenoids on engines and
vehicles
Check solenoid malfunction by measuring its resistance
and inductance simultaneously and display results in
percentages
Display symbols to indicate
Short circuit
Broken wire
Burned internally
Solenoid valve stuck
Build-in database, factory pre-installed data to
cover more than 60 solenoids.
Allow user to add more solenoid data into the
database.
Adaptors for Bosch, Delphi, Denso, Caterpillar
injectors
Power management with battery power
indicating symbol.
Powered by 2 AA alkaline batteries
