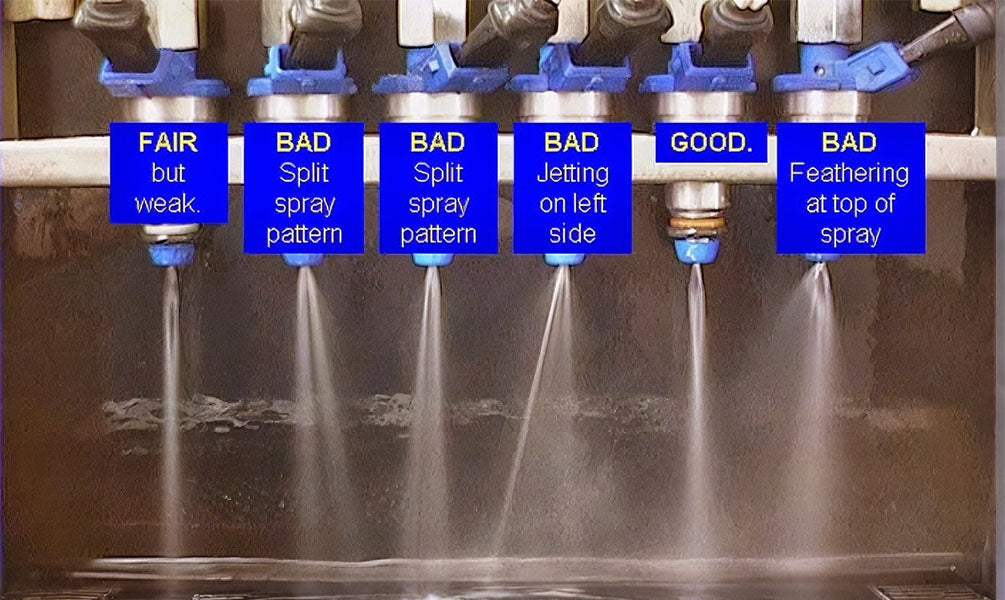

In the precise world of fuel injection, performance is measured in microns and milliseconds. The visual comparison of spray patterns serves as a fundamental diagnostic tool, translating invisible combustion quality into a clear, visual reality. Understanding this language is essential for anyone dedicated to maintaining peak engine performance.

1. The Gold Standard: Defining “GOOD”
The optimal spray pattern is characterized by uniform atomization and consistent distribution. This fine, even mist ensures:

• Complete Air-Fuel Mixing: Essential for efficient and clean combustion.

• Controlled Heat Release: Maximizes power output while minimizing thermal stress.

• Reduced Emissions: Prevents the formation of unburnt fuel particles and soot.

2. Decoding Failure: A Catalog of Costly Imperfections
Each deviation from the ideal pattern correlates to specific performance losses and risks.

• Weak Spray (“FAIR but weak”): Results in inadequate fuel delivery, causing power loss, incomplete combustion, and increased fuel consumption as the system struggles to compensate.

• Split Spray Pattern (“BAD Split”): Creates localized rich and lean zones within the cylinder. This leads to unstable combustion, heightened emissions, and potential engine knocking or misfires.

• Directional Deviation (“BAD Jetting on left side”): Causes fuel impingement on cylinder walls or piston surfaces. This washes away lubricating oil, increases wear, dilutes engine oil, and drastically raises hydrocarbon emissions.

• Unstable Pattern Edge (“BAD Feathering”): Indicates partial clogging or wear in the nozzle orifice. It disrupts the spray's symmetry, undermining the stability of the combustion process and its efficiency.

3. From Diagnosis to Solution: The Path to Optimal Performance
Recognizing these patterns is the first step. The critical next steps involve systematic action:

• Professional Testing: Utilizing calibrated test benches is non-negotiable for accurate assessment, far surpassing visual guesswork.

• Informed Selection: Choosing between precision cleaning, reconditioning, or replacement depends on the severity of wear and the cost-benefit analysis for the specific application.

• Quality as a Prerequisite: Installing nozzles with certified, OEM-equivalent spray patterns and flow rates is the only way to restore designed engine performance, fuel economy, and emissions compliance.

The condition of a nozzle's spray pattern is a direct report card on engine health and operational economy. Prioritizing its inspection and maintenance is not a minor detail—it is a central strategy for ensuring reliability, efficiency, and longevity in any fuel-dependent engine system.
